CONNECTION SYSTEMS FOR THE INSTALLATION OF EV CHARGING STATIONS
EV CHARGER
From wallboxes to fast charging parks, CEMBRE supports the development of electric mobility by providing a complete range of solutions for connecting the entire network of private and public charging stations.
Public and corporate EV charging stations, as well as residential wallboxes, are constantly increasing, and with them, the demand for energy!
With the transition to an increasingly electric world, it is important to ensure electric vehicles have a continuous and secure energy supply through a modern charging network that is perfectly integrated into the electrical infrastructure.
CEMBRE offers manufacturers and operators of electric charging infrastructure complete connection systems to support the construction and installation of electric vehicle charging stations, providing wiring components designed to help ensure:
- Efficient connection between all components of the charging station
- Optimisation of each phase of installation and connection of the charging station
- The creation of a tidy electrical system that is clearly identified in all its parts
- The secure connection of the charging station to the power grid
- The continuous and safe power supply to the stations, without failures or interruptions
In this way, CEMBRE contributes to the spread of fast and safe charging solutions for every electric vehicle, ensuring constant control and monitoring of the entire charging process.
INNOVATIVE COMPONENTS FOR CONNECTING EV CHARGERS

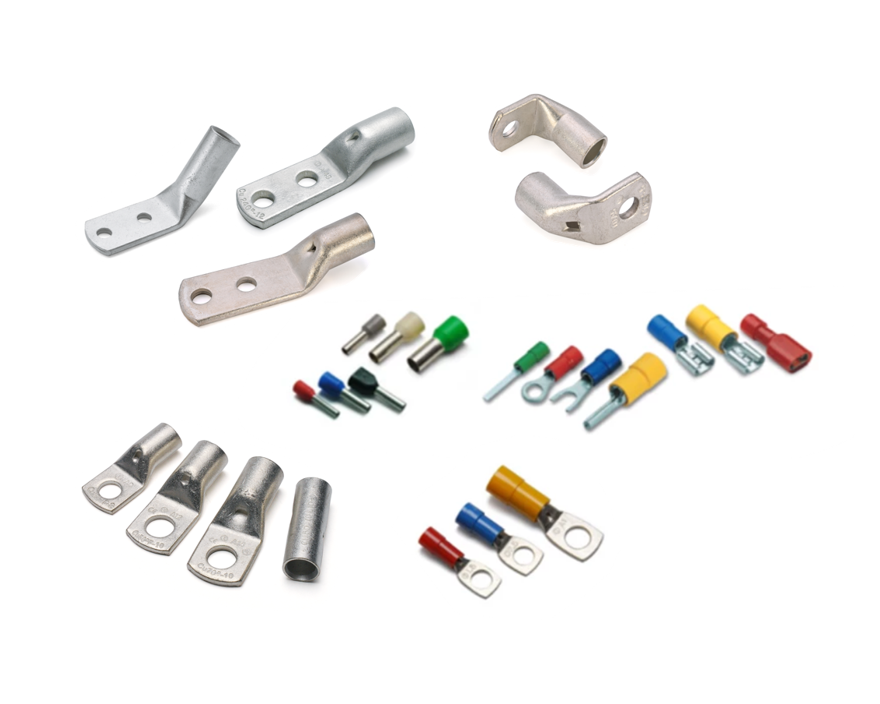

To connect devices and cables inside electric charging stations, CEMBRE offers copper and aluminium connectors and pre-insulated terminal lugs (fork, ring, spade, quick-connect, etc.) in its catalogue.
Non-insulated copper terminals
- AM: high-purity copper terminals up to 1000 mm2
- AM: terminals with compact attachment for limited spaces
- AL: 90° bent terminals
- A-2M: terminals with two-hole attachment
- A-2M: two-hole terminals, bent at 315° and 345°
- DR-N: terminals compliant with DIN 46325 up to 1000 mm2
- TM: terminals compliant with NF C 20130 up to 400 mm2
Pre-insulated copper terminals
- F range: PVC insulated terminals
- P range: PC insulated terminal lugs
- F-F and F-M range: female and male plug-in terminal lugs
- ANE range: PA6.6 insulated copper terminal lugs up to 150 mm2
Cable management is essential to ensure a safe and tidy installation. Cable glands allow electrical cables to be organised and secured appropriately within the system.

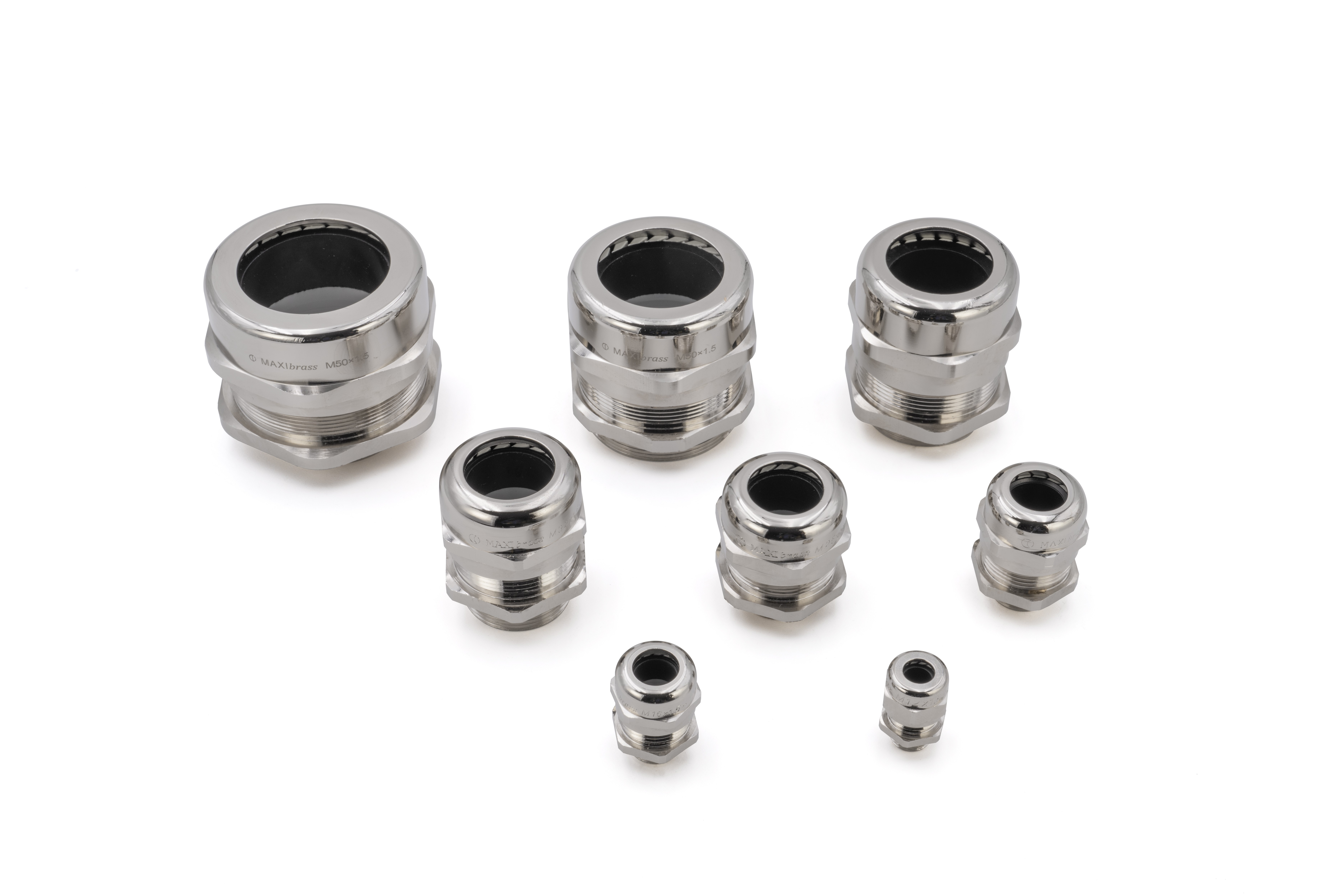

Maxibrass: IP68 nickel-plated brass cable glands.

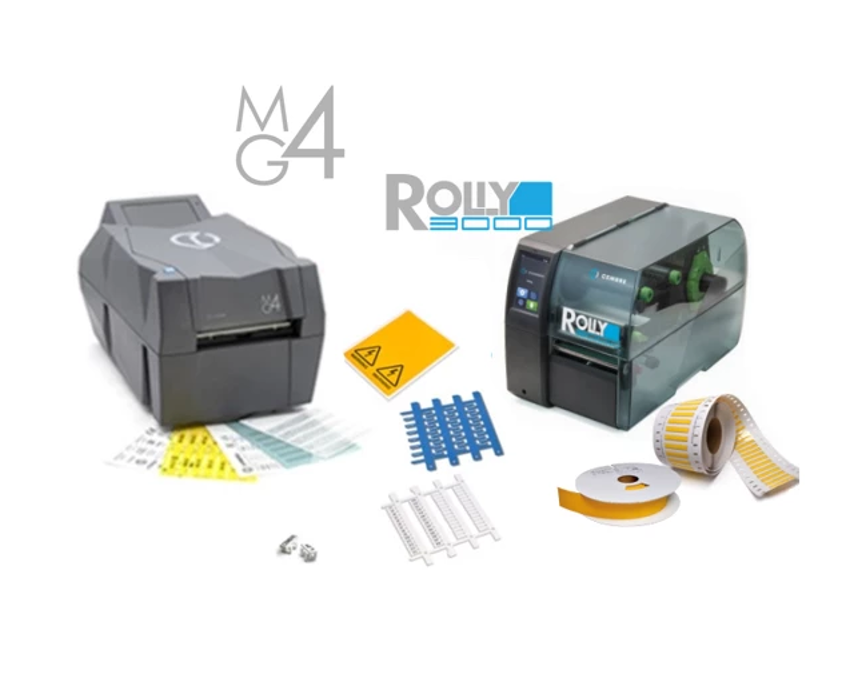

The identification of components is essential for the safety and maintenance of systems. Labelling systems complete with printers, labels and fastening systems allow you to organise and identify cables and components inside electric vehicle charging stations.

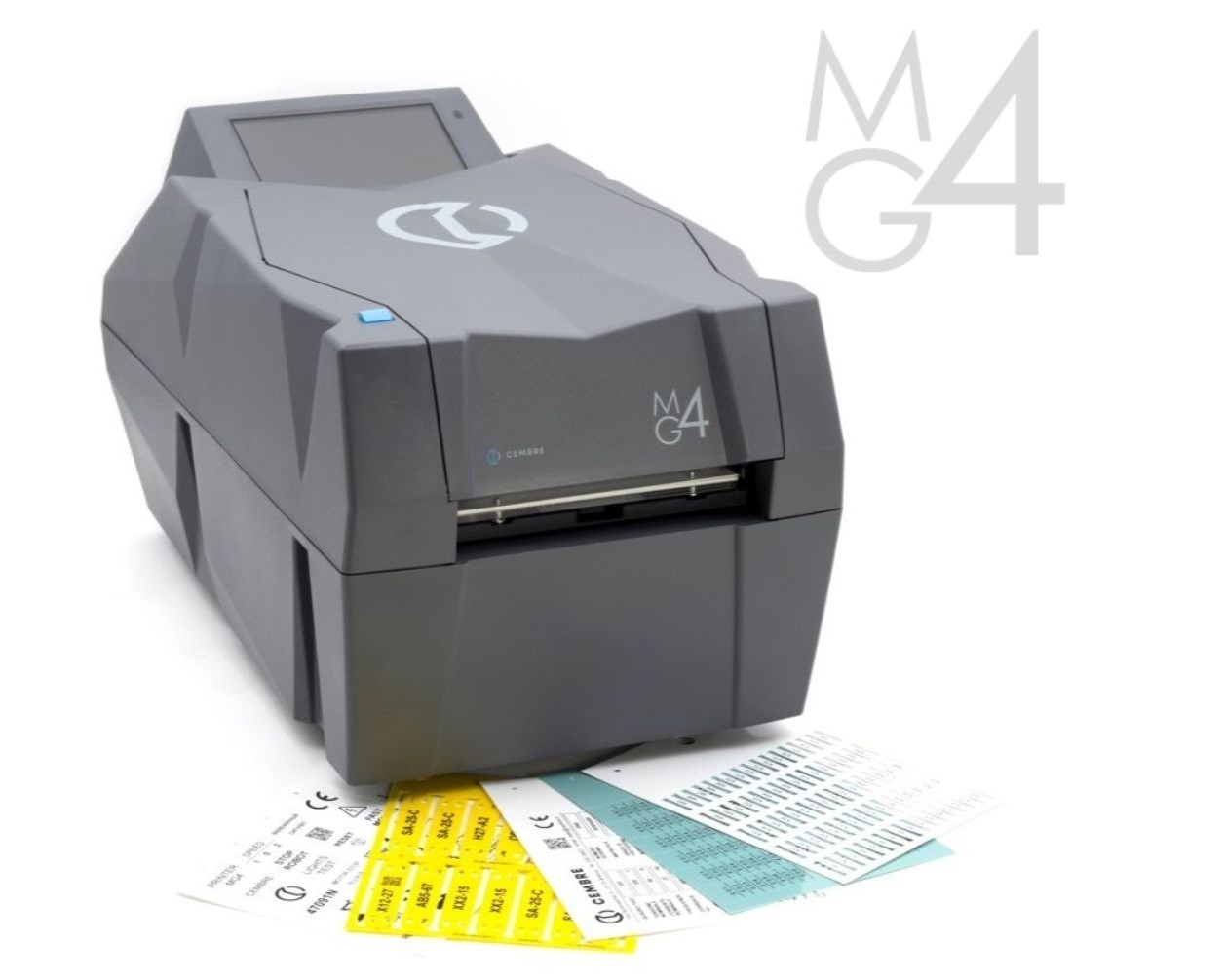

Thermal printing system on card
Thermal printing system on roll
- ROLLY3000 battery-powered thermal printer on roll
- ROLLY3000WR automatic printing and application system
- KM-ROLL-PO: adhesive polyolefin cable tags, silicone-free and halogen-free
Software for creating labelling projects
- GENIUSPRO software for digital printing of cable tags, terminals, connectors, buttons, components, panel plates and adhesive labels.

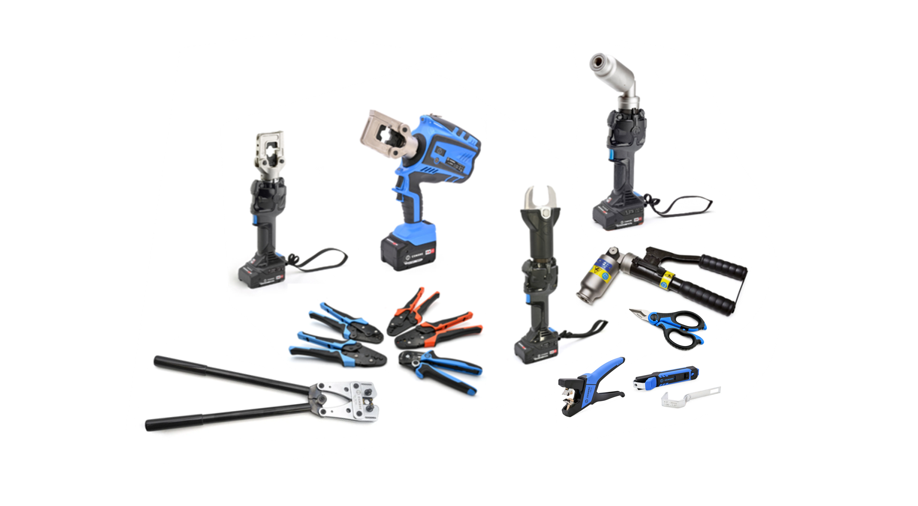

Manual and battery-powered professional tools for the compliant installation and wiring of all charging station components.
Manual tools for installation and maintenance
- ZKE610N and ZKE616N: crimping tools
- HP3: Crimpstar series manual crimping tools
- SC5X and SC6X: professional shears
- HB: wire stripping tools
Battery-powered crimping tools for intensive work
- B500ND: bilinear tool (5 tonnes)
- BA500: adaptive tool (5 tonnes)
- B600CND: bilinear tool (6 tonnes)
- BA600C: adaptive tool (6 tonnes)
Battery-powered cable cutters
- B-TC400ND-SC: cuts copper and aluminium cables up to 40 mm
- B-TC500ND-SC: cuts copper and aluminium cables up to 52,5 mm
Drilling of sheets and gauges for cable entry and cable gland installation
Electric mobility is one of the key solutions for making transport more sustainable and environmentally friendly. Electric vehicles can reduce direct emissions, especially when the electricity comes from renewable sources.
To meet the challenges of electric mobility in a sustainable way, every manufacturer and installer of electric vehicle charging stations must be able to rely on high-quality and safe wiring components.
As a supplier of products for the connection and linking of charging infrastructure, CEMBRE is committed to providing a complete range of systems for the power supply, connectivity and monitoring of electric car charging stations, supporting its customers in choosing the best tailor-made solutions.
CEMBRE does not only provide solutions for the installation of charging stations. With many of its connection systems, CEMBRE contributes every day to the construction and modernisation of electricity generation and distribution plants, which guarantee continuous and accessible energy for every vehicle at every charging station!
As a manufacturing company, CEMBRE is committed to contributing directly to sustainable energy transition on a daily basis.
CEMBRE's commitment to sustainability extends from production to logistics. In line with the objectives of its corporate social responsibility programme, CEMBRE powers its offices and production facilities with 100% certified renewable energy.
