9210 multi-membrane cable entry plates
09 December 2025
The EWO cable entry system series expands with the introduction of the new range of EWO circular membranes 9210 - a solution designed for organizing unmarked cables.
9210 SERIES
9210 SERIES

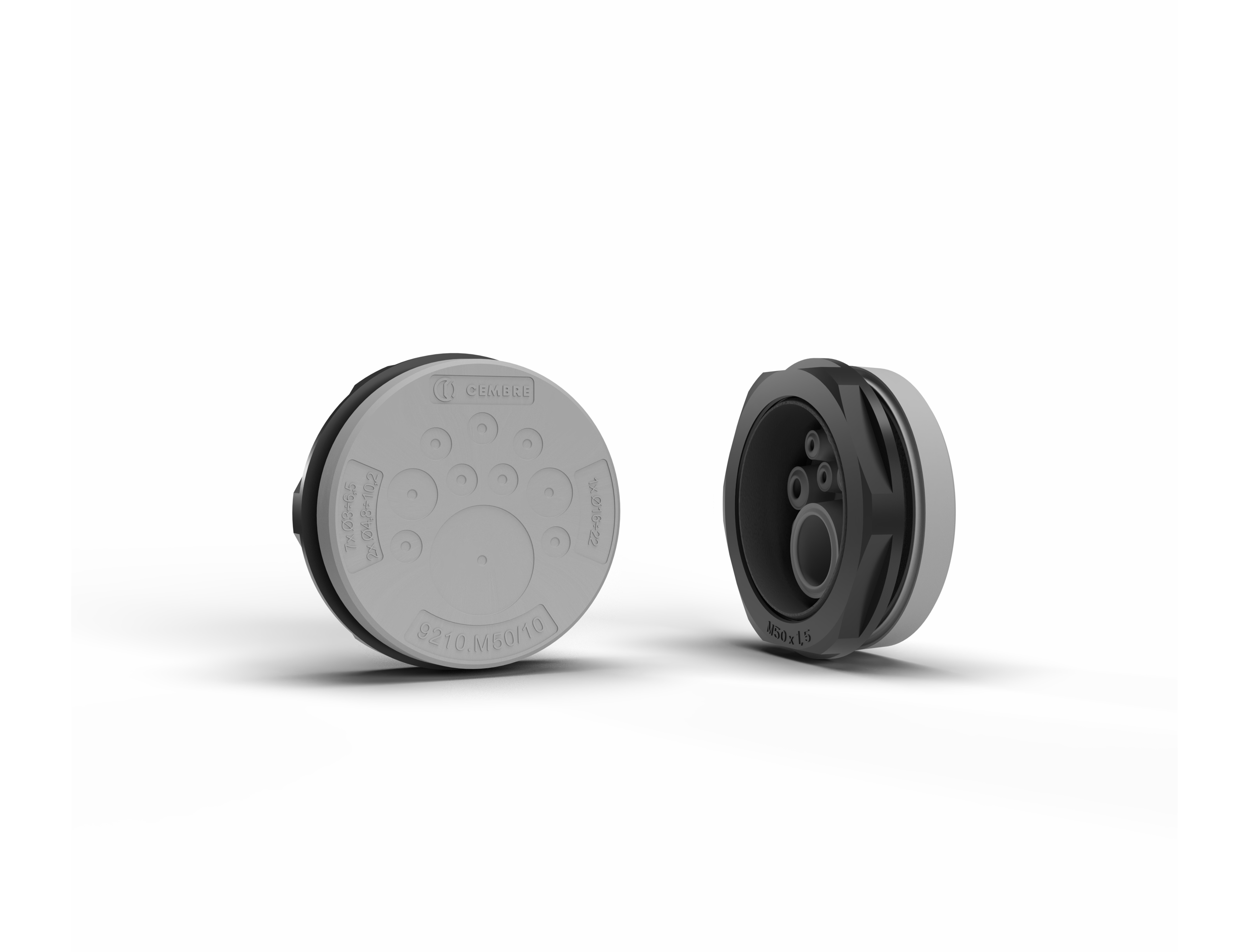

Cable entry systems with reinforced circular frame
Like the 9200 series, the 9210 circular membranes are a practical and safe space-saving choice, designed for the passage and organization of unmarked cables connecting industrial plants, machinery, automation systems and rotating equipment.
MAIN TECHNICAL FEATURES
- Self-extinguishing TPE elastomer class V0 (UL94).
- Reinforced structure in polypropylene with fiberglass.
- IP65 protection certified according to EN 60529
- Double seal to increase cable resistance to traction.
- Guided break system in the center for cable insertion.
- Operating temperature: -40°C to +100°C (-104°F to 212°F)
- Color: grey RAL7004.
The reinforced circular membranes are equipped with a mechanical clamping system with lock nut to ensure maximum ease of assembly during installation and the best level of sealing of the cable entry system in any application environment.
DISCOVER THE FULL RANGE!
Different diameters and numerous connection options
M32 WITH 32.5 MM (1.26 IN) HOLE
- 9210.M.M32/4 – 4 cables can be inserted; housing range 3–12 mm (0.12 – 0.47 in)
- 9210.M.M32/4-2 – 4 cables can be inserted; housing range 5–9.5 mm (0.20 – 0.37 in)
- 9210.M.M32/7 – 7 cables can be inserted; housing range 3–6.5 mm (0.12 -0.26 in)
M40 WITH 40.5 MM (1.59 IN) HOLE
- 9210.M.M40/8 – 8 cables can be inserted; housing range 3–10.2 mm (0.12 – 0.40 in)
M50 WITH 50.5 MM (2 IN) HOLE
- 9210.M.M50/8 – 8 cables can be inserted; housing range 4.8–12 mm (0.19 – 0.47 in)
- 9210.M.M50/10 – 10 cables can be inserted; housing range 3–22 mm (0.12 – 0.87 in)
- 9210.M.M50/12 – 12 cables can be inserted; housing range 3–10.2 mm (0.12 – 0.40 in)
- 9210.M.M50/19 – 19 cables can be inserted; housing range 3–6.5 mm (0.12 – 0.26 in)
M64 WITH 64 MM (2.52 IN) HOLE
- 9210.M.M63/9 – 9 cables can be inserted; housing range 3–22 mm (0.12 – 0.87 in)
- 9210.M.M63/13 – 13 cables can be inserted; housing range 3–16.2 mm (0.12 – 0.64 in)
- 9210.M.M63/14 – 14 cables can be inserted; housing range 4.8–10.5 mm (0.19 – 0.41 in)
- 9210.M.M63/35 – 35 cables can be inserted; housing range 3–6.5 mm (0.12 – 0.26 in)
INSTALLATION OF EWO SERIES FRAMES ON NON-PRE-DRILLED PANELS?
THE SOLUTION IS B-FL75OND!
The B-FL750ND punching tool and the EWO series of cable entry systems are designed to work in perfect synergy, forming a single system that guarantees safe, secure and tidy cable entry into four-wire systems.
Main features of the B-FL750ND:
- Special dies for drilling sheet metal.
- Creation of round holes up to Ø 140 mm (5.51 in)
- Suitable for metal, plastic or fiberglass sheets up to 3.5 mm (0.14 in) thick.
